Miscou Banks

  • Large open deck with washdown pump and sediment workstation34-foot length
  • Wheelhouse boasts a coffee bar, client workstation and head
  • 18-inch draft
  • Up to 30 kt cruise speed 100 nm range with 20 nm reserve
  • 2000lb SWL A-Frame with 5000lb hydraulic winch
  • 300lb SWL Davit with 850lb hydraulic capstan winch and 3000 lb electric winch
  • 50cm draft and beachable
  • IMCA certified 2014 (since certification the only change to Miscou Banks was the removal of the diesel inboard and addition of the 300 hp and 15 hp outboards) www.imca-int.com/marine
  • 34-foot length
  • 9-foot beam
  • 18-inch draft
  • 8 X 12 foot deck
  • cruise speed 25-28 knots
  • Twin 300 hp outboards
  • Twin 10hp electric drive for positioning during coring
  • Lowrance HDS9 with radar and structure scan
  • Honda hydraulic power pack
  • 3000-watt Honda generator
  • A-frame SWL is 2200 lbs (sampling system weighs 1500 lbs)
  • Davit SWL is 850 lbs and is equipped with a 850 lb hydraulic capstan winch and a 4000 lb electric winch

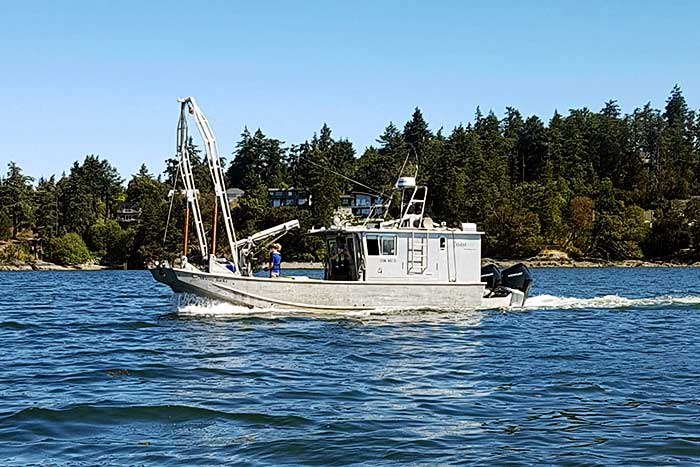

Miscou-Banks-4-opt

Image 3 of 3
